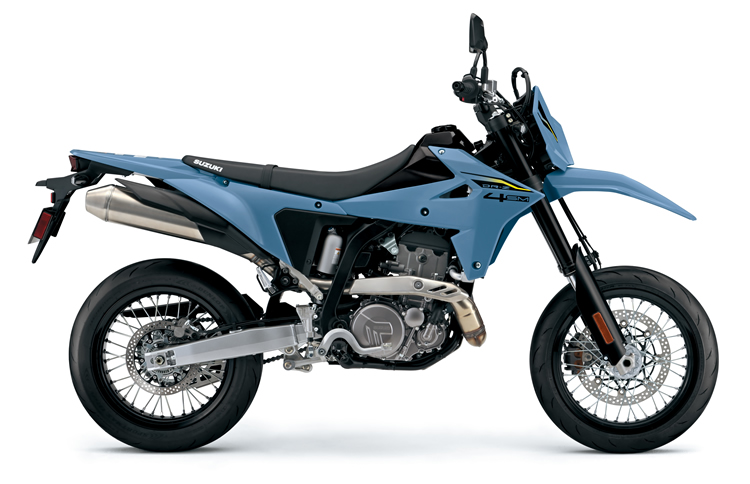

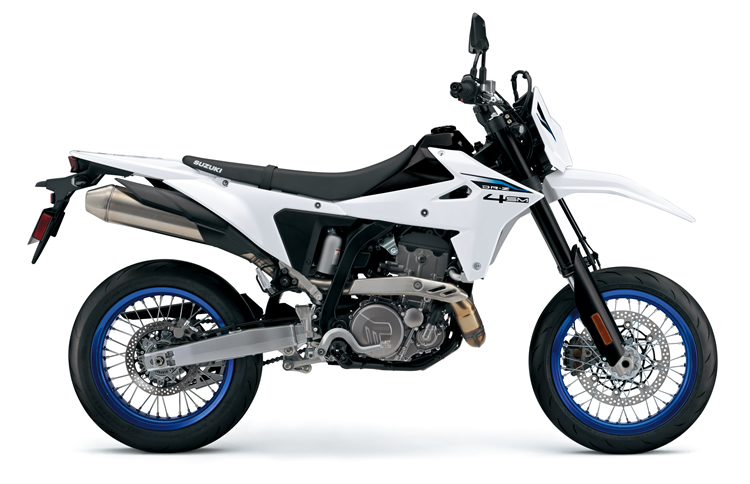

YOUR STREETS. YOUR PLAYGROUND. Dominate the streets. Take command of supermoto tracks. Or simply put the pleasure back into your daily commute. The new DR-Z4SM provides a level of faithful performance and freedom that will boost your confidence and free you to ride unfettered.
So, get out there. The streets are your playground to enjoy.
Both the high and low beams are incorporated into one bright LED projector headlight that is compact, light and durable. LED position lights integrated right into the turn signal assemblies help round out the functional yet minimalistic lighting scheme.
The newly designed LCD instrument panel is both light and compact. It features a clearly legible display that not only supplies critical real-time operating status information, but also keeps you informed of the settings for the respective on-board systems.
The rear combination light and license plate light both employ compact LEDs that create a highly visible and striking lighting scheme, contributing to the futuristic appeal of the tough, modern styling.
The ergonomic switch layout maximizes operating ease so you can access all controls while remaining focused on riding. Select modes or change settings for each of the advanced electronic rider assist systems by simply operating the MODE and UP/DOWN switches on the left handlebar.
Oveall length 2,195 mm
Overall width 885 mm
Overall height 1,190 mm
Wheelbase 1,465 mm
Ground clearance 260 mm
Seat height 890 mm
Fuel Tank 8.7L
Oil Capacity 1.9L
Curb mass
154kg
Engine type 4-stroke, single-cylinder, liquid-cooled, DOHC
Bore x Stroke 90.0 mm x 62.6 mm
Displacement 398 cm3
Compression ratio 11.1 : 1
Ignition system Electronic ignition
Fuel system Fuel injection
Lubrication system Dry sump
Transmission 5-speed constant mesh
Suspension Front Inverted telescopic, coil spring, oil damped
Rear Link type, coil spring, oil damped
Brakes Front Disc
Rear Disc
Rake / trail 26.5°/ 95 mm
Tyres Front 120/70R17M/C 58H, tube type
Rear 140/70R17M/C 66H, tube type
